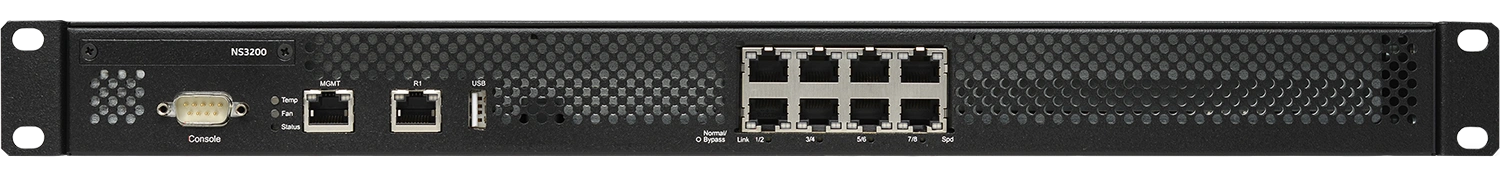

Trellix NS 3200 Intrusion Prevention System 1U Sensor
Engineered for professionals who demand the best in performance, security, and design.
Supports inbound and outbound SSL decryption (including DH/ECDH), along with emulation-based inspection for malware, PDFs, Flash, and Microsoft Office files, plus advanced evasion protection and mobile/cloud threat analysis.
Detects and blocks threats using DNS/DGA and fast-flux analysis, sinkholing, bot heuristics, attack correlation, and a command-and-control database.
Includes traffic reassembly, signature-based detection (Trellix, open-source, Snort), allow/block controls, sandbox and virtual inspection, host quarantine, rate limiting, and HTTP decompression.
Uses threshold and heuristic detection, host connection limiting, and self-learning profile-based detection.
Provides reputation-based filtering for files, IPs, URLs, applications, and protocols, with geo-location awareness and allow listing via Trellix GTI categories.
Supports active-active and active-passive high availability with stateful failover, plus built-in and external fail-open options.
Supports IPv6, MPLS, GRE, Q-in-Q VLANs, and IPv4/IPv6 tunneling in all combinations.
Supports tiered management of up to 1,000 sensors, centralized policy control, user authentication (RADIUS/LDAP), automated failover and disaster recovery, and memory usage monitoring per device.
Full specifications for the model
| SKU | NS3200 | NS3200 |
|---|---|---|
| Release | With 10.1 update 2 release and earlier | With 10.1 update 3 release and later |
| Aggregate Performance | 200 Mbps | 750 Mbps |
| Maximum Throughput (UDP 1512-byte Packets) | Up to 1 Gbps | Up to 1 Gbps |
| Maximum Concurrent Connections | 80,000 | 100,000 |
| Connections Per Second | 20,000 | 25,000 |
| HTTP Connections Per Second | 15,000 | 15,000 |
| Throughput With SSL Decryption (based On 10% SSL Traffic) | — | — |
| Throughput With SSL Decryption (100% SSL Traffic) | — | — |
| Maximum SSL Flow Count | — | — |
| Number Of Virtual IPS Systems | 32 | 32 |
| Maximum DoS Profiles | 128 | 128 |
| ACL Rules | 1,000 | 1,000 |
| Fixed GB Ethernet—copper Ports (internal Fail-open) | 8 | 8 |
| Fixed 1 GigE (SFP) Ports | — | — |
| Fixed 10 GigE/1 GigE (SFP+) Ports (external Passive Fail-open Kit Support) | — | — |
| Fixed 40 Gigabit Ethernet | — | — |
| Network I/O Slots | — | — |
| Network I/O Modules | — | — |
| 10 Gigabit Ethernet | — | — |
| 40 Gigabit Ethernet | — | — |
| Dedicated Response Ports (RJ45) | 1 (1G/100M) | 1 (1G/100M) |
| Dedicated Management Ports (RJ45) | 1 (1G/100M) | 1 (1G/100M) |
| Dimensions | 1RU Rack Mountable 17.375” (W) x 1.75” (H) x 11.0” (D) | 1RU Rack Mountable 17.375” (W) x 1.75” (H) x 11.0” (D) |
| Weight | 8.1 lbs. | 8.1 lbs. |
| Storage | Solid State 30 GB | Solid State 30 GB |
| Maximum Power Consumption | 100W | 100W |
| DC Power Available | — | — |
| Spare Power Supply | — | — |
| Power | 100–240 VAC (50/60Hz) | 100–240 VAC (50/60Hz) |
| Temperature | 0° C to 35° C (operating); -40° C to 70° C (non-operating) | 0° C to 35° C (operating); -40° C to 70° C (non-operating) |
| Relative Humidity (non-condensing) | Operational: 10% to 90%; Non-operational: 5% to 95% | Operational: 10% to 90%; Non-operational: 5% to 95% |
| Altitude | 0 to 10,000 feet | 0 to 10,000 feet |
| Safety Certification | UL 60950-1, UL 62368-1 (USA); CSA 22.2.No. 60950-1, CSA 22.2 No. 62368-1 (Canada); EN 60950-1, EN 62368-1 (Europe); CNS 14336-1 (Taiwan); GB 4943.1 (China); IEC 60950-1, IEC 62368-1 (International)—CB Scheme certificate and test report covering all applicable country deviations; IEC 60825 and 21CFR1040 | UL 60950-1, UL 62368-1 (USA); CSA 22.2.No. 60950-1, CSA 22.2 No. 62368-1 (Canada); EN 60950-1, EN 62368-1 (Europe); CNS 14336-1 (Taiwan); GB 4943.1 (China); IEC 60950-1, IEC 62368-1 (International)—CB Scheme certificate and test report covering all applicable country deviations; IEC 60825 and 21CFR1040 |
| EMI Certification | FCC Part 15 Subpart B Class A (USA); CAN ICES-3 Class A (Canada); EN 55022, EN 55032, EN 55024, EN61000-3-2, EN61000-3-3 (Europe and International); KN32 and KN24 (South Korea); VCCI Class A (Japan); AS/NZS CISPR 32 (Australia and New Zealand); CNS 13438 (Taiwan); GB 9254-2008 and GB 17625.1 (China) | FCC Part 15 Subpart B Class A (USA); CAN ICES-3 Class A (Canada); EN 55022, EN 55032, EN 55024, EN61000-3-2, EN61000-3-3 (Europe and International); KN32 and KN24 (South Korea); VCCI Class A (Japan); AS/NZS CISPR 32 (Australia and New Zealand); CNS 13438 (Taiwan); GB 9254-2008 and GB 17625.1 (China) |
| ROHS Compliance | Restriction of hazardous substances compliance per applicable directives and standards | Restriction of hazardous substances compliance per applicable directives and standards |
Download product documentation and resources
Need multiple devices for your business or project? Contact us to discuss bulk pricing, availability, and delivery options.
Contact UsExplore other configurations and models that might suit your needs.
Recommended

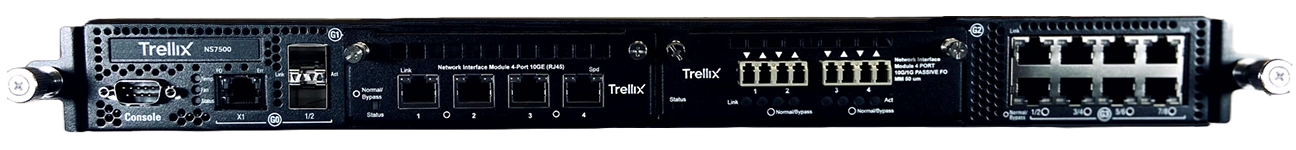

#NS7500
Recommended

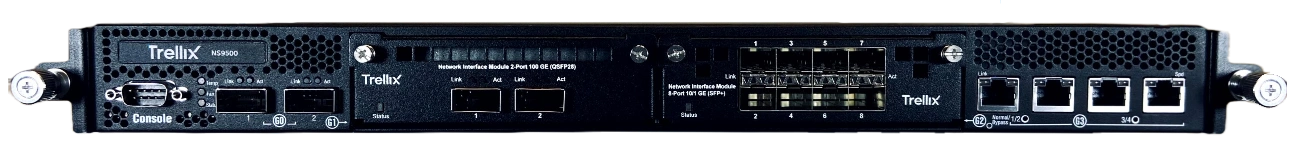

#NS9500
